JavaScript Robotics

I have used Node.js in embedded systems for a wide variety of projects, both in and out of my degree, and still continue using it for various DIY IoT systems I use on a day to day basis. So, along with a friend and fellow Node-robotics enthusiast @ChrisWoollon we decided to produce a short talk at Plymouth JS, our local meetup. This post will cover the topics we highlighted in the talk we gave.

Why would one use Node in embedded systems, especially when the alternatives such as Python, or C run much more efficiently than running the heavy V8 engine, is a good question, and one I often get asked alot.

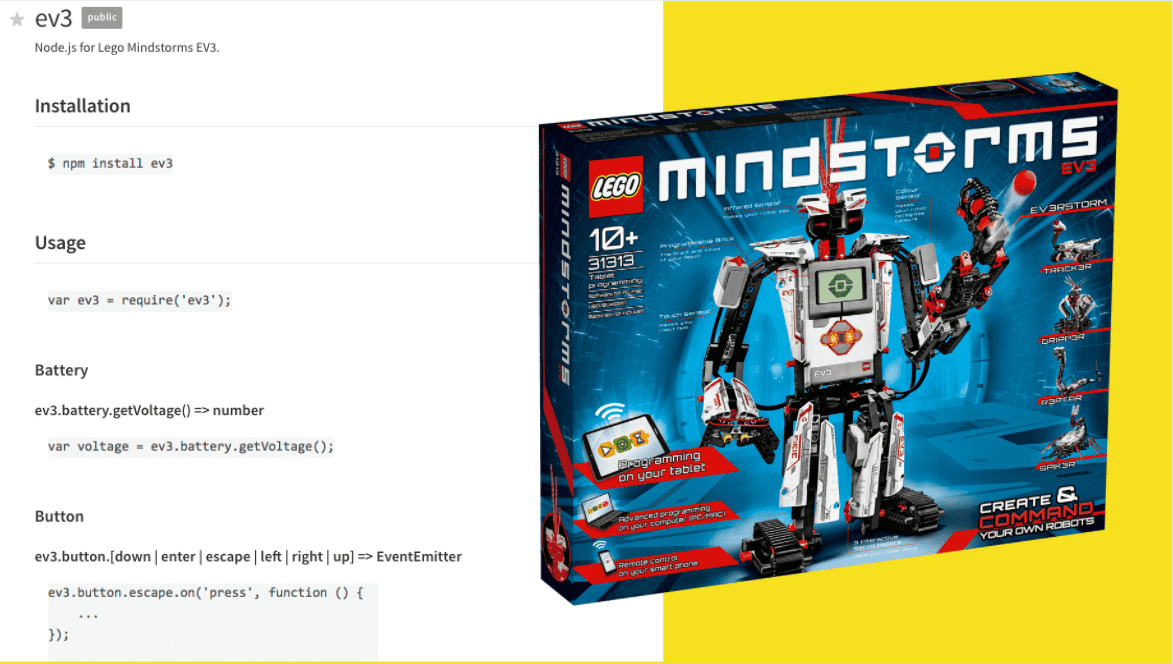

Advantages JavaScript currently is one of the most popular languages, being picked up by many newcomers to programming due to its low barrier to entry and job opportunities, meaning many people have skills in the language so naturally this is their language of choice when trying to work with embedded systems. With a large adoption rate comes a large variety of libraries, packages and frameworks, a few of my favourites include a Node wrapper for the Lego MindStorm API - E3.js and Node SerialPort for communicating to technologies through serial.

Adapring from browser animation and efficient streaming processing, JavaScript actually suit the embedded systems architecture quite well, subverting typical conventions of embedded programming and posing a fresh unique solution to many problems in robotics.

Finally, web combined with other Node systems, such as a server, calling APIs, communicating with browsers, the data flow becomes much simpler. Being able to query a MongoDB and pass that data through various external requests and using the payload directly without serialization is a huge time saver and allows one to efficiently maintain state in the stack.

Memory Allocation The issue with using Node is that it runs on the V8 engine, following this answer, the absolute minimum for normal running is 20-30mb, although this is true, the actual memory usage depends on the app being run. Usually, a device such as a RaspberryPi is compatible, with a memory capacity of 248mb it is possible to run Node and other processes. On devices with a smaller memory allocation Node can be configured to use less memory with passing flags when running a process.

 var five = require("johnny-five");
var board = new five.Board();

board.on("ready", function() {
  var led = new five.Led(13);
  led.blink(500);
});

var Cylon = require("cylon");

// Initialize the robot
Cylon.robot({
  // Change the port to the correct port for your Arduino.
  connections: {
    arduino: { adaptor: 'firmata', port: '/dev/ttyACM0' }
  },

  devices: {
    led: { driver: 'led', pin: 13 }
  },

  work: function(my) {
    every((1).second(), function() {
      my.led.toggle();
    });
  }
}).start();
